REPOSAL® releases layer-wound high-voltage package full-automatic interlayer insulation winding machine


Suzhou Xiepu Electronic Machinery Equipment Co., Ltd. successfully released the SP-D102M7 model of layer-wound high-voltage package automatic interlayer insulation winding machine-this model greatly improves the winding efficiency of layer-wound high-voltage package coils, and the coil is consistent Sex. The REPOSAL® winding machine reduces the winding cost of the layer-wound high-voltage package. In the new model, it has added a compact insulation belt automatic cutting mechanism, and high-quality solutions such as dynamic balance performance after multiple skeletons are wound.


The SP-D102M7 numerical control winding machine of REPOSAL® has changed the layer-wound high-voltage package. It can only wind one product at a time, and after each layer of coil, the relatively backward process of insulating materials must be manually inserted. All improvements reflect the design and development values of Xiepu winding machine. It also reflects the pursuit of performance, efficiency, and customer-centric thinking of Xiepu winding machines.





Related Post

Precision C-shaped coil winding machine

Precision C-shaped coil winding machine

Precision C-shaped coil winding machine

     REPOSAL® releases double-wound thick wire diameter air core coil winding machine

REPOSAL® releases double-wound thick wire diameter air core coil winding machine

        Suzhou REPOSAL® Electronic Machinery Equipment Co., Ltd. released the sp-s112hb double-wound thick-wire air-core coil winding machine model-this model is mainly for the air-core coil with a large enameled wire diameter, and the winding speed is fast and consistent. Good performance, through the optimization of the control system and machinery, during the winding process of the larger enameled wire diameter air-core coil, it provides customers with a competitive solution for wire end fixation, tension control, winding accuracy, and demolding speed.



     REPOSAL® releases Automatic winding machine

REPOSAL® releases Automatic winding machine

Suzhou REPOSAL® Electronic Machinery Equipment Co., Ltd. released: automatic induction coil winding machine.



        This model is mainly used for the winding of rod-shaped inductors. During the winding process of this winding machine, the rod-shaped inductor realizes unattended full automation. Its winding speed is fast, inductance consistency is good, and debugging Convenient and easy to maintain, it provides a competitive solution for the winding process of rod-shaped inductors for the cooperative customers of REPOSAL®

REPOSAL Winding Machine® Released Precision Automatic Paint Stripping and Wire Breaking Winding Machine

REPOSAL Winding Machine® Released Precision Automatic Paint Stripping and Wire Breaking Winding Machine

Suzhou REPOSAL Electronic Machinery Equipment Co., Ltd. releases precision automatic paint stripping and wire breaking winding machine

    In the inductive coil winding process, the winding process requirements of the coil are quite different.The diameter of the enameled wire varies from thin to thick, the structure of the coil varies from disk to column, and the type of enameled wire ranges from ordinary to self-adhesive wire. Therefore, for a coil winding factory that does not emphasize competitiveness, the machine required is a winding machine with a larger range of adaptation, but often a winding machine with a larger range of adaptation is for each specific specification of coil winding. Whether it is quality or efficiency, it is difficult to have targeted competitiveness.

    In order to keep our customers competitive in the induction coil winding process, we have developed this winding machine-precision automatic paint stripping and breaking winding machine in response to customer needs.




This model is mainly aimed at coils with a skeleton with a larger enameled wire diameter. It has several features, one is the fast winding speed, if it can maintain a faster winding shaft speed when the diameter of the enameled wire is larger, and the other is the winding line is flat. Through control and targeted structural optimization, a compact and consistent coil can be stably wound. Third, there is an automatic paint stripping function. For thicker non-direct welding enameled wires, adding this function is equivalent to combining two processes Integrating into one process, the fourth is to add the function of automatic disconnection.For thicker enameled wires, automatic disconnection improves efficiency, strengthens consistency, and significantly reduces the labor intensity of operators.

For details, please refer to the video. The operation beat of this video is taken during the acceptance of the machine. The entire operation process is fast and stable, but in fact, there is still room for improvement in the efficiency of fixing and dismantling the enameled wire head.

REPOSAL Winding Machine® Released  high-speed precision synchronous winding machine

REPOSAL Winding Machine® Released high-speed precision synchronous winding machine

         Suzhou REPOSA Electronic Machinery Equipment Co., Ltd. releases high-speed precision synchronous winding machine



          Strip coil: refers to a coil with a relatively large length and diameter, which is divided into a rigid frame and a flexible frame. In its winding process, the main characteristics are as follows, one is that its clamping needs to be clamped at both ends. The other is because of the comparison of its length and diameter. The corresponding torsional rigidity is relatively small, so it is necessary to synchronize the angular velocity at both ends of the clamping. In response to the process requirements of this type of coil, REPOSAL has successfully developed a high-speed precision synchronous winding machine. Fast, can significantly improve the winding efficiency of such strip coils.
Common mode inductor winding machine 2

Common mode inductor winding machine 2

The function of common mode inductor is to suppress common mode interference, and it is a relatively important filter inductor.



       It is different from a differential mode inductor. Although the two types of inductors are filter inductors, the different functions determine the appearance and winding method will be different. For the common mode inductor, it is wound on the same core, and the two The coil diameter of each winding is the same as the number of turns, but the winding direction is opposite. A set of coils has two pins, so the common mode inductor has 4 pins; while the differential mode inductor is wound on a core and only has A coil, so it has only 2 pins, so the common mode inductance and the differential mode inductance can be distinguished from the number of pins.


     Also because the common mode inductor is two windings with opposite winding directions, the ideal winding effect is that the arrangement of the positive and negative directions is neat.

Enclosed rectangular transformer winding machine-thin wire reciprocating

Enclosed rectangular transformer winding machine-thin wire reciprocating

Enclosed rectangular transformer coil with a thin diameter of 0.12mm, which requires fast winding speed and convenient product loading and unloading.





Special precision coil winding

Special precision coil winding

Special precision coil winding

Automatic tape wrapping machine

Automatic tape wrapping machine

Suzhou REPOSAL®Electronic Machinery Equipment Co., Ltd. developed a fully automatic iron core coating machine,

The diameter of the processed iron core is between 6mm-16mm, the processing speed is fast, the operation is stable, and the accuracy is high.

Solenoid valve winding machine|Solenoid valve coil precision winding machine|Precision winding machine

Solenoid valve winding machine|Solenoid valve coil precision winding machine|Precision winding machine

Solenoid valve winding machine|Solenoid valve coil precision winding machine|Precision winding machine:

        For precision electromagnetic coils, there are usually many turns, which require neat arrangement, and the process design is also divided into two types with and without skeleton.

For frameless coils, steel molds are required to form.Relatively speaking, the precision of steel winding molds is better controlled.

        Under the existing solenoid valve winding machine processing technology, it is not difficult to achieve a size of 0.01mm on both sides of the steel winding mold, and the parallelism on both sides is 0.01

mm is also not difficult. However, if there is no wire frame mold steel wire winding mold, there will be two new problems, one is forming, the winding is completed

After the final removal, there is no skeleton.To prevent the coil from being scattered, it is necessary to use an alcohol fuse or a hot fuse. These two materials

Compared with the ordinary wire, the cost is not small. The second problem is demolding, a thicker one, and more windings

It's quite laborious to remove the coil from a steel mold, it's not like a coil with a small coin, and

What's more, this winding process itself has viscous materials that are melted or hot melted.

        So people also use the second solenoid valve winding machine process, a precision electromagnetic coil with a skeleton.Similarly, this is not a very good process route.

The skeleton is formed by an injection mold, and there are inevitably some problems with injection products, such as deformation, shrinkage, dimensional consistency, etc.

        However, the advantages of this solenoid valve winding machine are also obvious, that is, it is easy to demold and form. It is only because of the poor consistency of the size of the skeleton.

Higher requirements are put forward, the key point is that wire, skeleton structure, skeleton mold, winding tooling, winding machine, every link

Will affect the quality of the winding, in this case, according to our own advantages, we provide a complete service according to customer needs

Including skeleton design, mold structure design, tooling design, and winding machine. In the past successful cooperation, this way of service Gret advantages.

Classification and difference of transformer winding machine

Classification and difference of transformer winding machine

Classification and differences of common transformer winding machines

Choosing the right winding machine is the key to the production of coils. There are many types of winding machines as the basic equipment. This article mainly takes transformer winding machines as an example, and talks about its classification and differences, generally according to the voltage level or capacity of the transformer. Division, the common ones are ordinary CNC winding machines, automatic winding machines, foil winding machines, and vertical winding machines, etc.

REPOSAL® successfully developed an ultra-precision flow tube metering heating wire winding machine

REPOSAL® successfully developed an ultra-precision flow tube metering heating wire winding machine

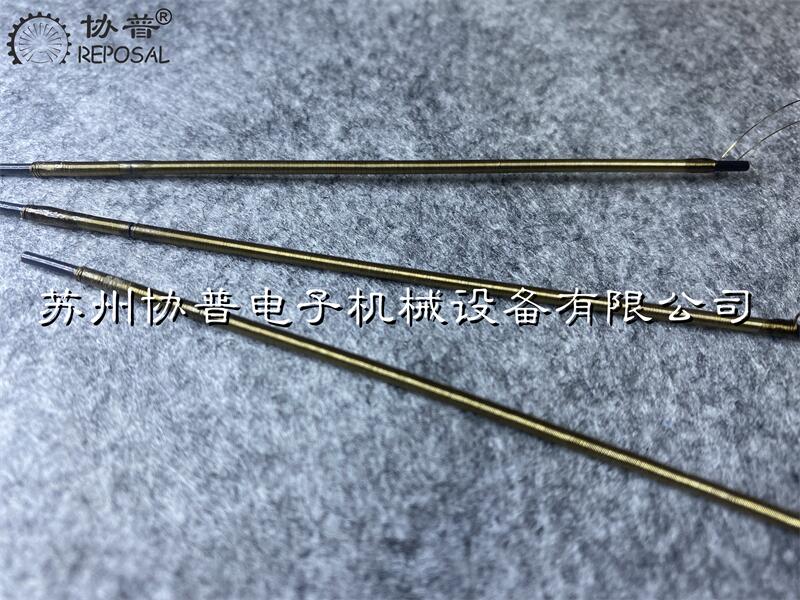

             On August 6, the first ultra-precision flow tube metering heating wire winding machine independently developed by Suzhou REPOSAL® Electronic Mechanical Equipment Co., Ltd. successfully completed the test, and the performance of each index reached the level of the industry in advanced foreign countries.
