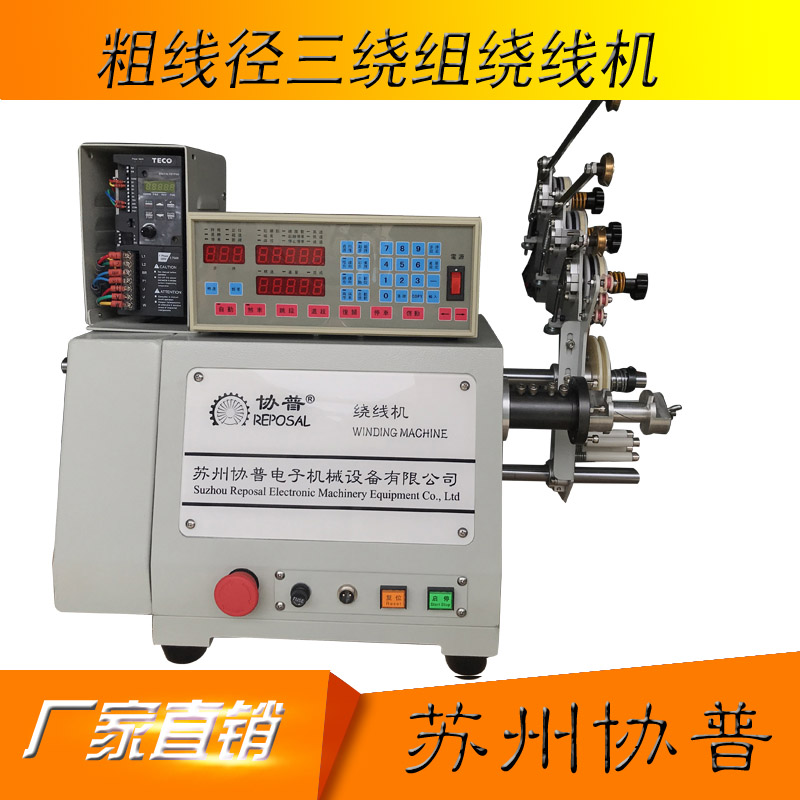

Thick wire diameter transformer winding machine sp-112da6

Thick wire diameter transformer winding machine sp-112da6 Features:

     The controller adopts a precision CNC winding machine controller and is equipped with a Taiwan TECO inverter to ensure stable operation.

     The professional controller of the winding machine has complete functions, clear layers, simple setting and many additional expansion functions, such as deceleration at both ends, parking at both ends, power-off memory and other functions.

     The program can be changed to achieve multi-function according to the specific requirements of customers.

     The power circuit uses an improved anti-interference circuit, which has strong anti-interference ability.

     The winding system of the winding machine can adjust the position in time during the winding process, and the winding is stable and low noise.

     It can store 1000 sets of processing data, and it will not be erased when the power is turned off.

     Integrated casting case, stable and reliable.

Device name: Thick wire diameter multi-winding transformer winding machine

         1. Controller: Precision winding controller

         2. Inverter: Taiwan TECO Inverter

         3. Cable arrangement: built-in dual-axis precision cable arrangement.

         4. Clamping mechanism: with flange and hardened high-precision adjustable coupling.

         5.Tension control: precision linear tensioner with strain relief function.

         6. Wire diameter range (mm): 0.05-2.0mm

         7. Processing coil rotation diameter: 240 mm

         8. Maximum speed (rpm): 1000 RPM

         9. Number of winding shafts: 1

         10. Spindle motor: 0.75 KW three-phase asynchronous motor

         11. Row winding motor: improved precision stepping motor

         12. Cable width (mm): 210

         13. Power supply 220V/50HZ

         14. Cast chassis, cast base.

         15.Dimensional weight: 70X60X50CM 50KG

         16. Three sets of standard vigorous moment thread passing and tension mechanism.

         17. Automatic interlayer insulating tape table.
