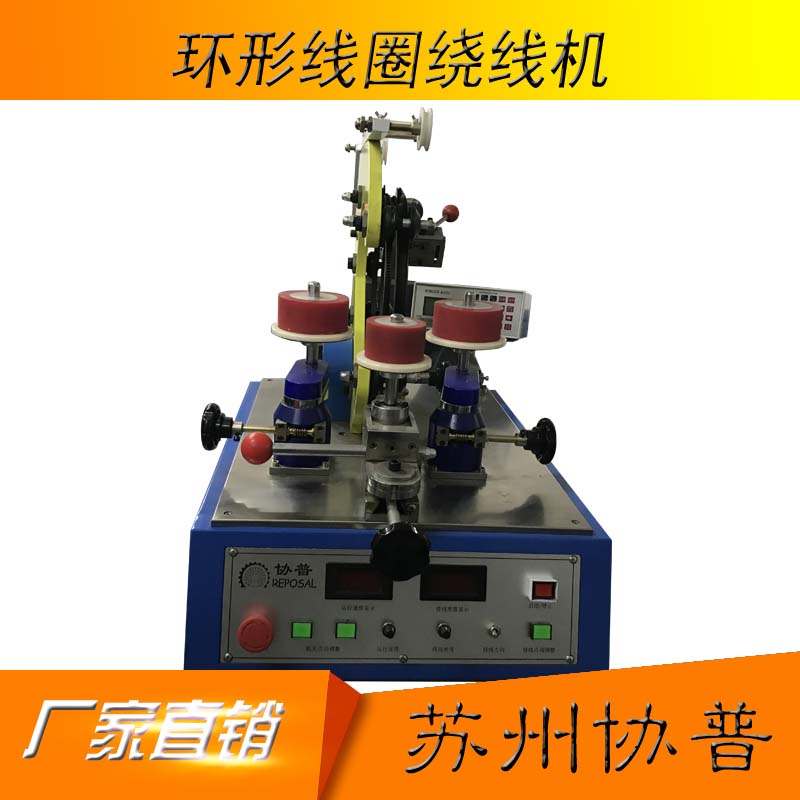

Gear type ring coil winding machine sp-4731

Tags: Winding machine, ring coil winding machine, magnetic winding machine, Toroidal transformer winding machine, transformer winding machine, transformer coil winding machine, inductance winding machine.

Gear type ring coil winding machine sp-4731

Toroidal coil winding machine features:

        1. Gear type Toroidal coil winding machine has the characteristics of large winding torque, high storage ring opening size, large storage capacity and wide range of suitable winding diameter, etc. It is the most versatile winding machine, suitable for winding wire diameter Thick, flat cables require neat and multi-stranded products, such as secondary windings of small toroidal transformers, primary and secondary windings of high-power toroidal transformers, large-diameter inductive magnetic rings, current transformer coils and adjustable resistors.

        2. According to the external dimensions of the product, complete the inner and outer diameters, the number of turns and other parameters, calculate the length of the winding, and select the appropriate size model.

        3. The storage ring of different width can be replaced on the same model to meet the storage capacity and complete inner diameter of products of different sizes, and the scope of application is wider.

        4. The adjustable range of the fixture is large, the cable density can be adjusted quickly and the function of the segment cable density is especially suitable for winding transformer products with multiple windings.

        5. Various types of suitable wire materials, such as enameled copper wire, enameled aluminum wire, steel wire, nylon wire and resistance wire, etc., can be used for coil processing of products in various industries.

        6. The default is double frequency conversion proportional drive speed control. Optional CNC digital program controller is installed, precision cable arranging, winding angle and automatic rotation angle can be preset.

Gear type ring coil winding machine (video)

        Item No .: SP-4731

        Winding method: gear type

        Finished outer diameter: 60 / 200mm

        Minimum finished inner diameter: 30mm

        Final height: 80mm

        Suitable winding diameter range: 0.7-2.0mm

        Storage ring diameter: 250mm

        Storage ring width: 5-18mm

        Maximum speed: 230RPM

        Working voltage: 220V \ 50Hz

        Dimensions: 500x600x750

        Machine quality: 100kg
