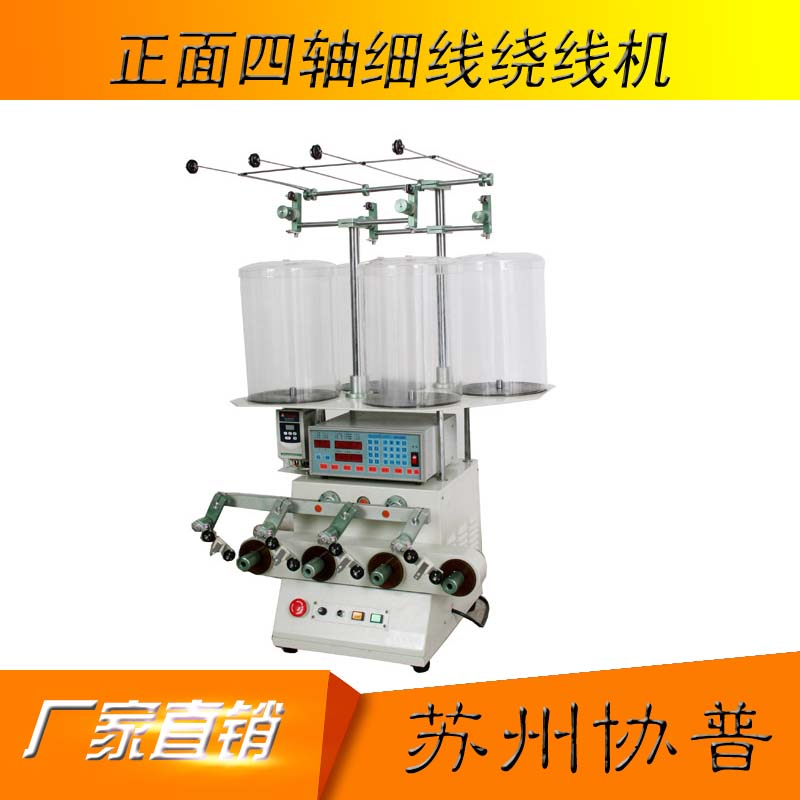

Front four-axis fine wire winding machine sp-401a

Tags: front four-axis winding machine, front multi-axis winding machine, transformer winding machine, coil winding machine, precision winding machine, electromagnetic coil winding machine, solenoid valve winding machine, high-speed winding machine

Front four-axis fine wire winding machine sp-401a

Winding machine Features:

     The controller adopts a precision CNC winding machine controller and is equipped with a Taiwan TECO inverter to ensure stable operation.

     The professional controller of the winding machine has complete functions, clear layers, simple setting and many additional expansion functions, such as deceleration at both ends, parking at both ends, power-off memory and other functions.

     The program can be changed according to the specific requirements of customers to achieve multi-function.

     The power circuit uses an improved anti-interference circuit, which has strong anti-interference ability.

     The winding system of the winding machine can adjust the position in time during the winding process, and the winding is stable and low noise.

     It can store 1000 sets of processing data, and it will not be erased when the power is turned off.

     Integrated casting case, stable and reliable.

Winding machine Model: sp-401a     (Reference video)

     Control mode: AC variable frequency motor control

     Number of spindles: 4 axes

     Spindle speed: 5000RPM

     Wire diameter range: 0.02-0.2mm

     Cable range: 0-120mm

      Bag size: 2-25mm

      Spindle motor: AC inverter motor 370W

     Cable motor: stepping motor

     Power supply: single-phase AC220V 50 / 60Hz

      Equipment weight: about 48Kg

      One-piece cast chassis, with winding and flex cable.
