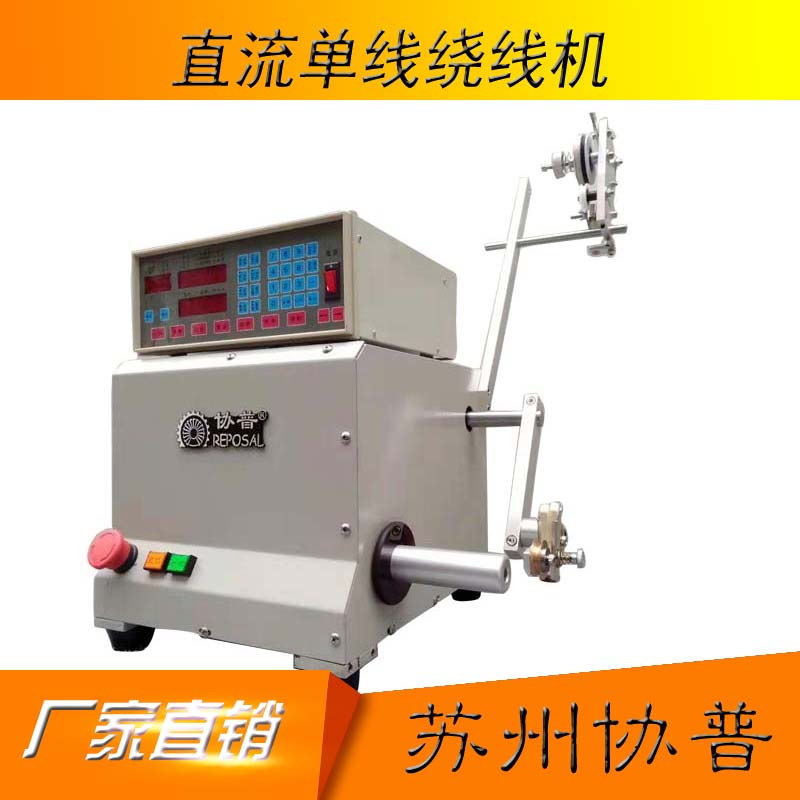

CNC Winding machine SP-D102B-4

Tags: CNC winding machine, transformer winding machine, high frequency transformer winding machine, power transformer winding machine, CNC winding machine, automatic winding machine, automatic winding machine

CNC Winding machine SP-D102B-4

Winding machine Features:

      Widely used in winding power transformers, high-frequency inductors, filters, general small parallel coils and other products.

  The control part of the winding machine adopts the special controller of the precision winding machine, and cooperates with high-quality motors, bearings, frequency converters, etc., so that the quality is guaranteed.

The winding machine's application function design is mature, the logic is clear, the winding function is complete, it has various auxiliary functions during the winding process, and it is simple to operate, it will not be erased when the power is turned off, there is a manual cable counting follow function, and the cable ends are automatically Deceleration function, the speed of the wire rod can be set.

  According to the specific requirements of the customer, the controller function can be designed to expand the input and output points (paid service).

  With power-off memory function, the power is suddenly cut off during the winding process, and the current state, parameters can be recorded and saved. After the power is turned on, the product will continue to be wound to reduce the waste of raw materials and working hours.

  Single-chip single-chip microprocessor design. Powerful, small size, strong anti-interference ability.

   Winding process data can save 999 groups, each group of process data can set different starting point, width, wire diameter, wire direction and winding direction, and cross-slot winding action.

Specifications: SP-D102B-4

        Name: Brushless 400W general wire frame winding machine

        Power supply: 220V / 50HZ

        Number of program groups: 999 groups

        Maximum speed: 6000RPM

        Cable stroke: 140mm

        Wire rack type: General coil wire rack

        Motor type: brushless motor

        Motor power: 400W

        Applicable wire diameter: 0.05-1.2 mm

        Standard accessories: foot switch. Instruction manual. Hexagon wrench

        Electromagnetic clutch: including electromagnetic clutch
