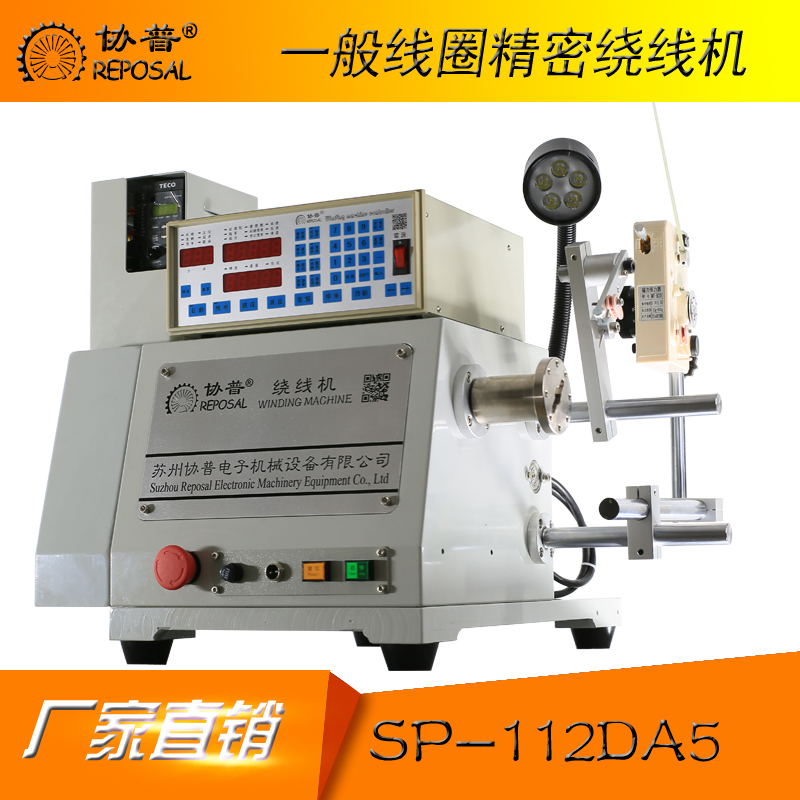

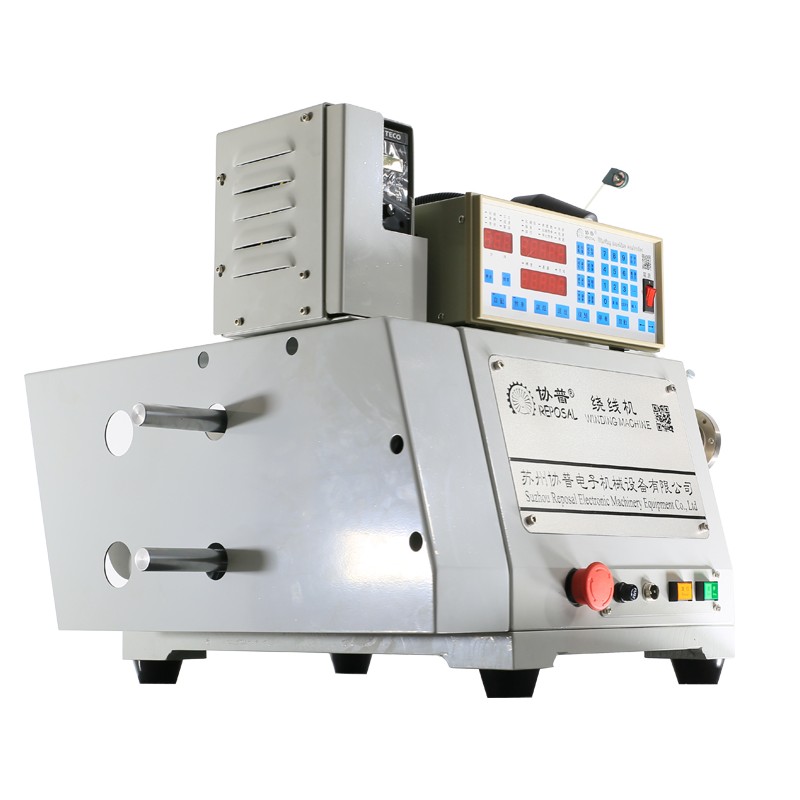

General Precision Coil Winding Machine SP-112DA5
This specification of winding machine has precise control algorithms and high structural accuracy, suitable not only for winding cylindrical coils but also with great advantages in the precision of disc-shaped coil winding.
Its tension and cable arranging structure adopts a standardized design, allowing quick replacement of different tensioners and cable arranging assemblies to reduce repeated investment.
Based on this machine, our company can provide other value-added services according to customer requirements, such as tooling design, skeleton design, process route design, etc.
The controller uses a precision CNC winding machine controller, equipped with a Taiwan Techtop frequency converter to ensure stable operation.
The professional controller for the winding machine has complete functions, clear layers, simple settings, and multiple additional expansion functions, such as two-end deceleration, two-end parking, power-off memory, etc.
It can achieve multiple functions by modifying the program according to specific customer requirements.
The power circuit adopts an improved anti-interference circuit with strong anti-interference ability.
The winding machine's cable arranging system can adjust the position in real time during the winding process, with stable cable arranging and low noise.
It can store 1,000 groups of processing data, which will not be erased in case of power failure, and the storage and call are simple.
- Model: SP-112DA5
- Controller: Precision CNC Controller
- Winding Motor: Asynchronous Motor, 750W
- Cable Arranging Motor: 57 Stepper Motor
- Coupling: Precision Flange, 80mm
- Tensioner: Magnetic Damping Tensioner
- Cable Arranging Device: Guide Pin
- Applicable Coils: Small and Micro Coils
- Frequency Converter: Taiwan Techtop S310
- Brake Resistor: Aluminum Shell Brake Resistor
- Transmission Type: Timing Belt
- Chassis Body: Casting Type
- Bearing Span: 320mm
- Cable Arranging Stroke: 200mm
- Rotation Diameter: 200mm
- Total Machine Power: 850W
- Speed Range: 250-5000 RPM
- Torque: 1.5N·m
- Applicable Wire Diameter: 0.03-0.5mm
- Storage Groups: 1,000 Groups
- Power Supply: 220V/50Hz
- Ambient Temperature: -10°C-40°C
- Ambient Humidity: 40%-60%
- Frequency Converter Protective Cover: Yes
- Electromagnetic Brake: Yes
- Hex Wrench: Yes
- Foot Switch: Yes
- Power Cord: Yes
- Tailstock: No
- Floor-standing Box: No
- Net Weight: 56kg
- Gross Weight: 79kg
- Outer Package Size: 50X40X55 (cm)
| Economy-winding-machine |
| Inverter |
TECO S310 (Taiwan)
|
| Spindle center height |
180mm |
