Precision coil winding machine sp-112d

Tags: Winding machine, precision winding machine, precision coil winding machine, custom precision winding machine, custom precision coil winding machine

Precision coil winding machine sp-112d

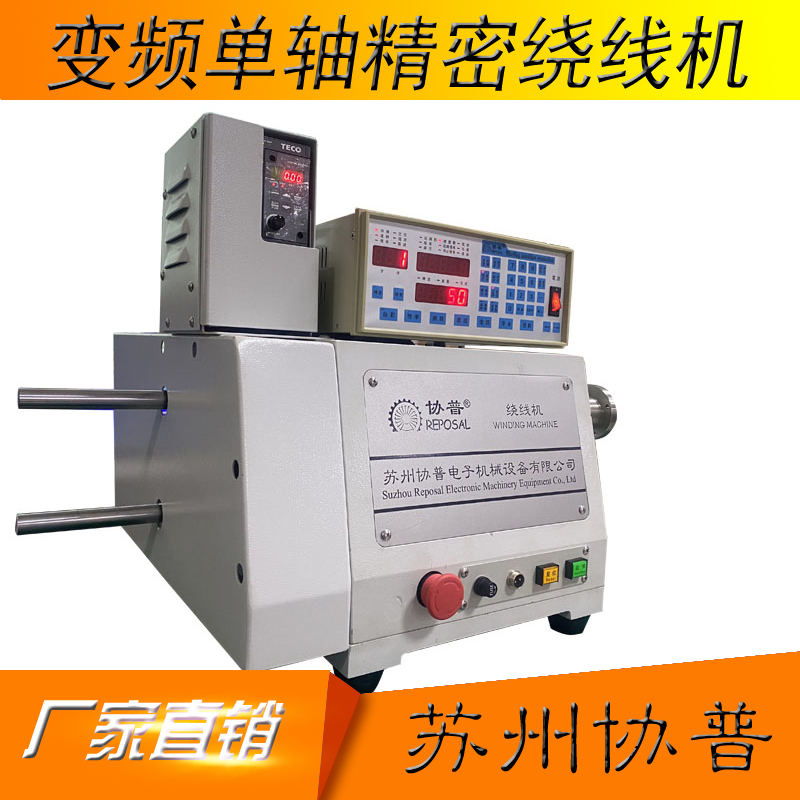

Precision coil winding machine sp-112d Features:

     The precision coil winding machine is mainly used for various skeleton coils and non-skeleton coils that require neat arrangement.

     This specification winding machine has precise control algorithm and high structural accuracy, which is not only suitable for the winding of cylindrical coils, but also has great advantages in the winding precision of disk coils.

     Our company can provide other tooling design, skeleton design, process route design and other value-added services according to customer requirements on this machine.

     The controller adopts a precision CNC winding machine controller and is equipped with a Taiwan TECO inverter to ensure stable operation.

     The professional controller of the winding machine has complete functions, clear layers, simple setting and many additional expansion functions, such as deceleration at both ends, parking at both ends, power-off memory and other functions.

     The program can be changed to achieve multi-function according to the specific requirements of customers.

     The power circuit uses an improved anti-interference circuit, which has strong anti-interference ability.

     The winding system of the winding machine can adjust the position in time during the winding process, and the winding is stable and low noise.

     It can store 1000 sets of processing data, it will not be erased when the power is turned off, and the storage and recall are simple.

     Integrated casting case, stable and reliable.

Equipment Name: Precision Coil Winding Machine

        1. Controller: precision winding controller

        2. Inverter: Taiwan TECO Inverter

        3. Cable structure: built-in dual-axis precision cable rod.

        4. Clamping mechanism: with flange and hardened high-precision adjustable coupling.

        5. Tension control: precision linear tensioner with strain relief function.

        6. Wire diameter range (mm): 0.05-2.0mm

        7. Processing coil rotation diameter: 240 mm

        8. Maximum speed (rpm): 1000 RPM

        9. Number of winding shafts: 1

        10. Spindle motor: 0.75 KW three-phase asynchronous motor

        11. Row winding motor: improved precision stepper motor

        12. Cable width (mm): 210

        13. Power supply 220V / 50HZ

        14. Cast chassis, cast base.

        15.Dimensional weight: 70X60X50CM 50KG
