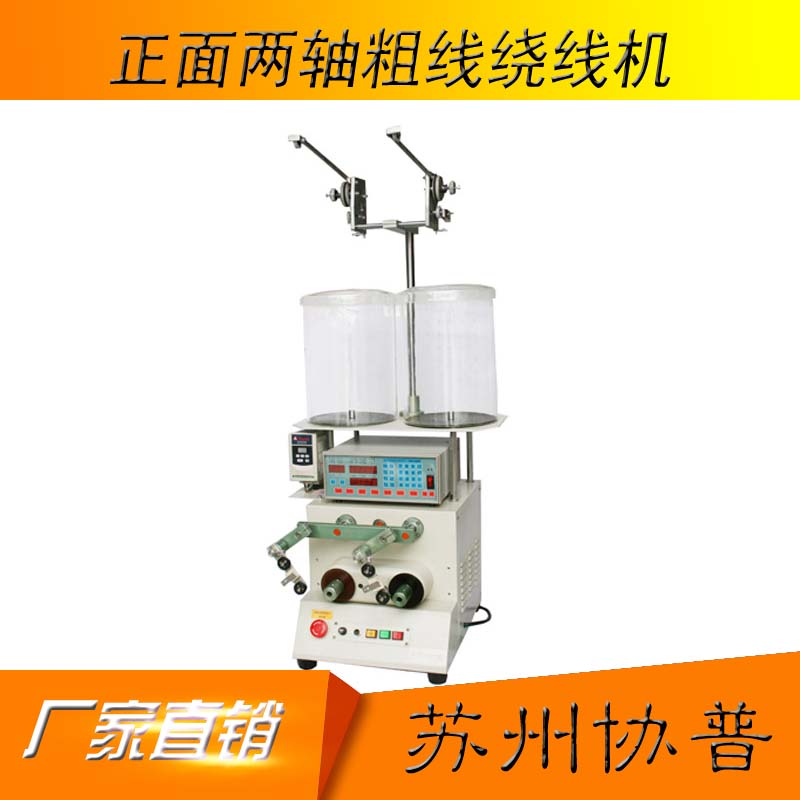

Front two-axis thick wire winding machine sp-201b

Tags: Winding machine, front two-axis winding machine, front multi-axis winding machine, transformer winding machine, coil winding machine, precision winding machine, electromagnetic coil winding machine, solenoid valve winding machine, high-speed winding machine

Front two-axis thick wire winding machine sp-201b

winding machine Features:

     The controller adopts a precision CNC winding machine controller and is equipped with a Taiwan TECO inverter to ensure stable operation.

     The professional controller of the winding machine has complete functions, clear layers, simple setting and many additional expansion functions, such as deceleration at both ends, parking at both ends, power-off memory and other functions.

     The program can be changed according to the specific requirements of customers to achieve multi-function.

     The power circuit uses an improved anti-interference circuit, which has strong anti-interference ability.

     The winding system of the winding machine can adjust the position in time during the winding process, and the winding is stable and low noise.

     It can store 1000 sets of processing data, and it will not be erased when the power is turned off.

     Integrated casting case, stable and reliable.

Front two-axis thick wire winding machine

        Control mode: AC variable frequency motor control

        Number of spindles: 2 axes

        Spindle speed: 3000RPM

        Wire diameter range: 0.1-0.7mm

        Cable range: 0-120mm

        Bag size: 2-25mm

        Spindle motor: AC inverter motor 370W

        Cable motor: stepping motor

        Power supply: single-phase AC220V 50 / 60Hz

        Equipment weight: about 45Kg

        One-piece cast chassis, with winding and flex cable.
