CNC Winding machine SP-D102A-4

CNC Winding machine SP-D102A-4

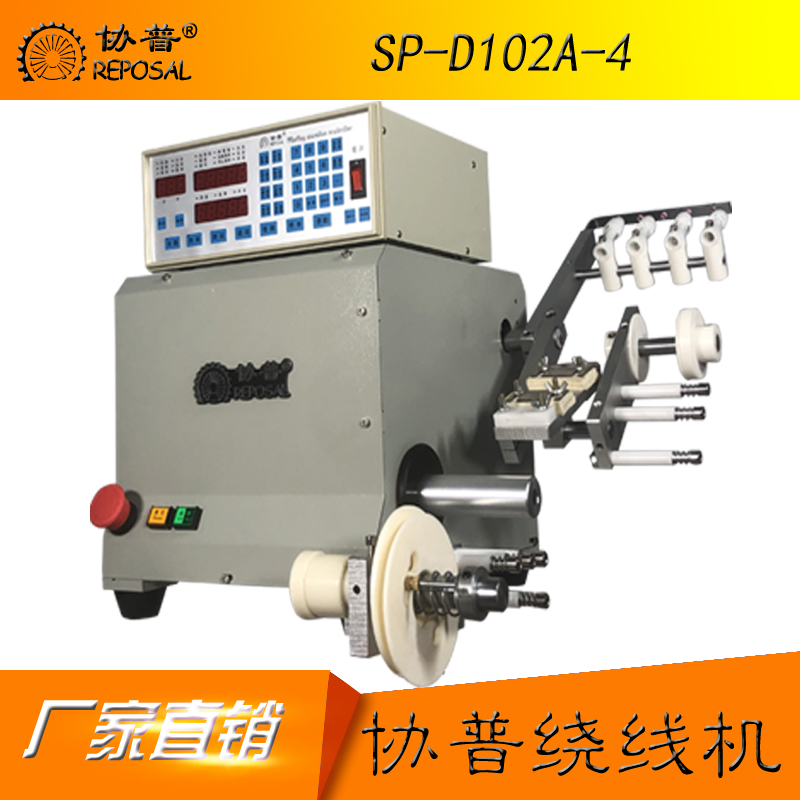

Winding machine Features:

      Widely used in winding power transformers, high-frequency inductors, filters, general small parallel coils and other products.

　　The control part of the winding machine adopts the special controller of the precision winding machine, and cooperates with high-quality motors, bearings, frequency converters, etc., so that the quality is guaranteed.

The winding machine's application function design is mature, the logic is clear, the winding function is complete, it has various auxiliary functions during the winding process, and it is simple to operate, it will not be erased when the power is turned off, there is a manual cable counting follow function, and the cable ends are automatically Deceleration function, the speed of the wire rod can be set.

　　According to the specific requirements of the customer, the controller function can be designed to expand the input and output points (paid service).

　　With power-off memory function, the power is suddenly cut off during the winding process, and the current state, parameters can be recorded and saved. After the power is turned on, the product will continue to be wound to reduce the waste of raw materials and working hours.

　　Single-chip single-chip microprocessor design. Powerful, small size, strong anti-interference ability.

　　 Winding process data can save 999 groups, each group of process data can set different starting point, width, wire diameter, wire direction and winding direction, and cross-slot winding action.

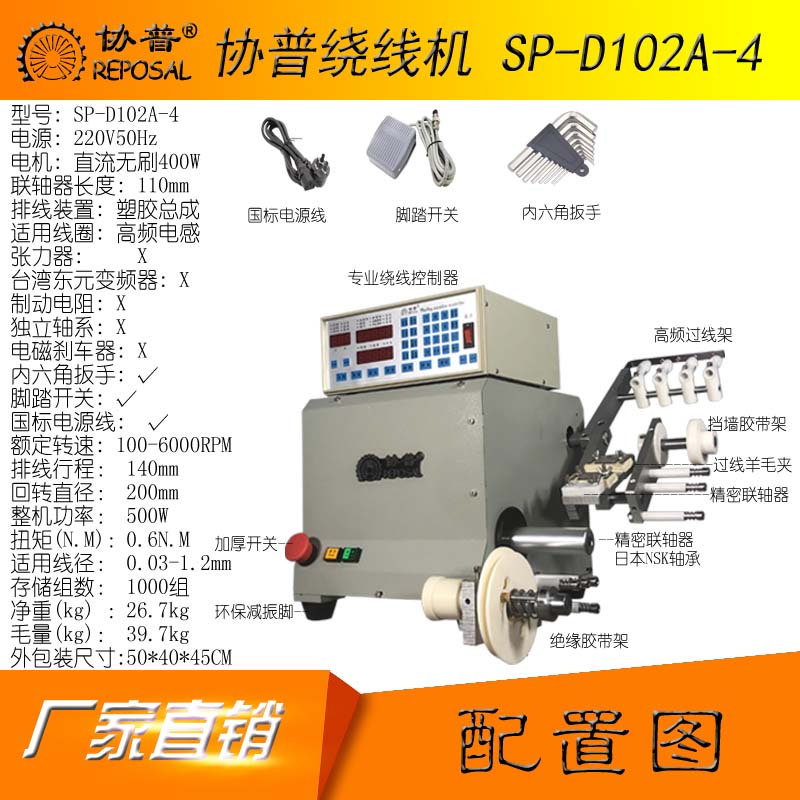

Technical Parameters:

       Model SP-D102A-4

       Power supply 220V50Hz

       Motor DC brushless 400W

       Coupling length 110mm

       Wire arrangement: plastic assembly

       Applicable coil high-frequency inductance

       Tensioner X

       Inverter X

       Braking resistor X

       Independent shafting X

       Electromagnetic brake X

       Hex wrench √

       Foot switch √

       Power cord √

       Rated speed 100-6000RPM

       Cable travel 140mm

       The maximum swing diameter is 200mm

       The power of the whole machine is 500W

       TORQUE(N.M) 0.6N. M

       "Applicable wire size（mm)" 0.03-1.2mm

       Number of storage groups: 1000 groups

       Net weight 26.7

       Gross (including wooden box) 39.7

       The outer packing size is 50*40*45CM
