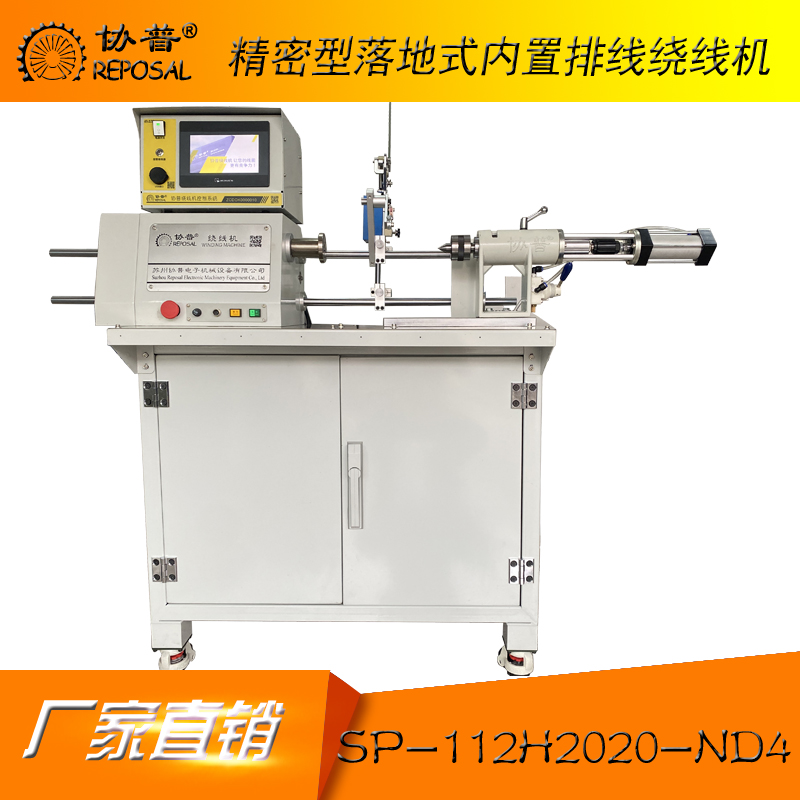

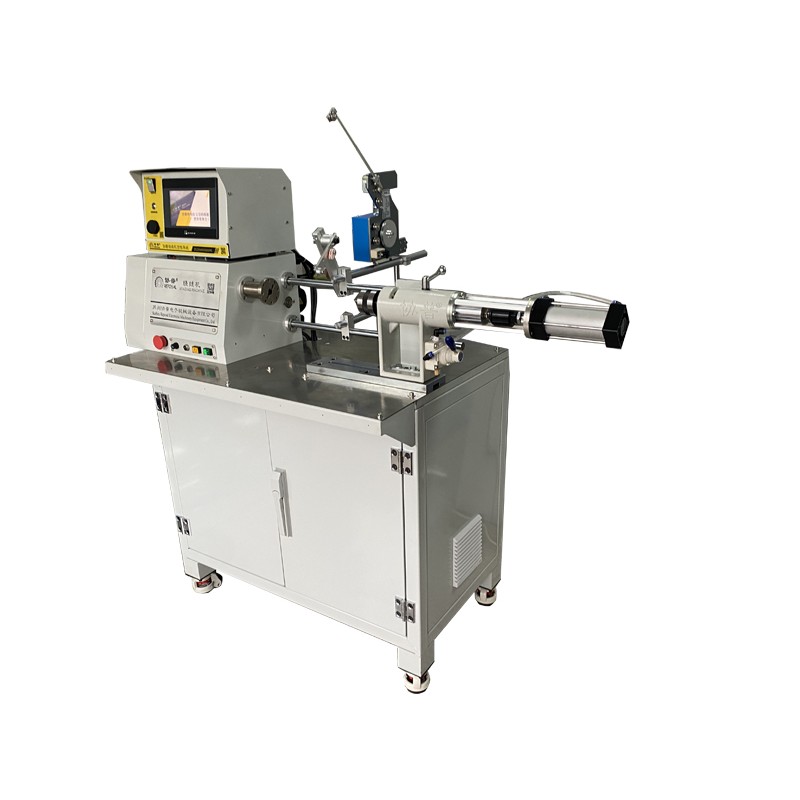

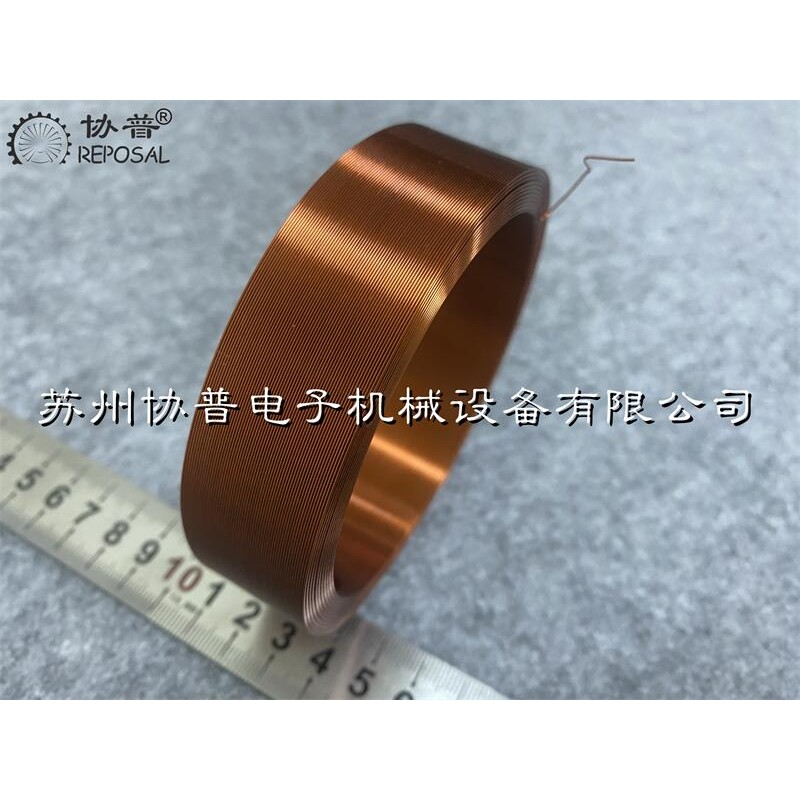

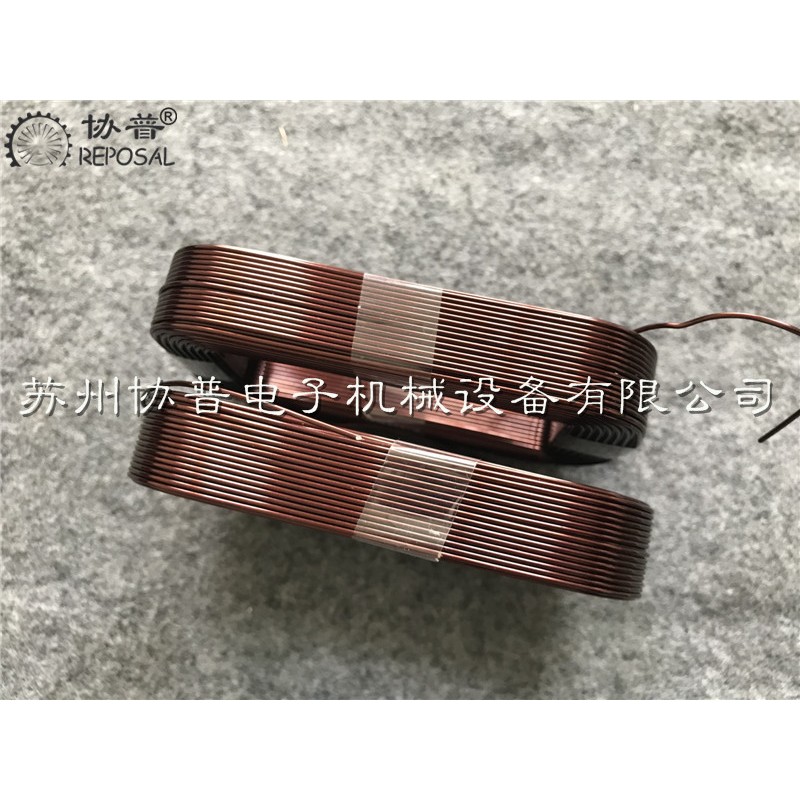

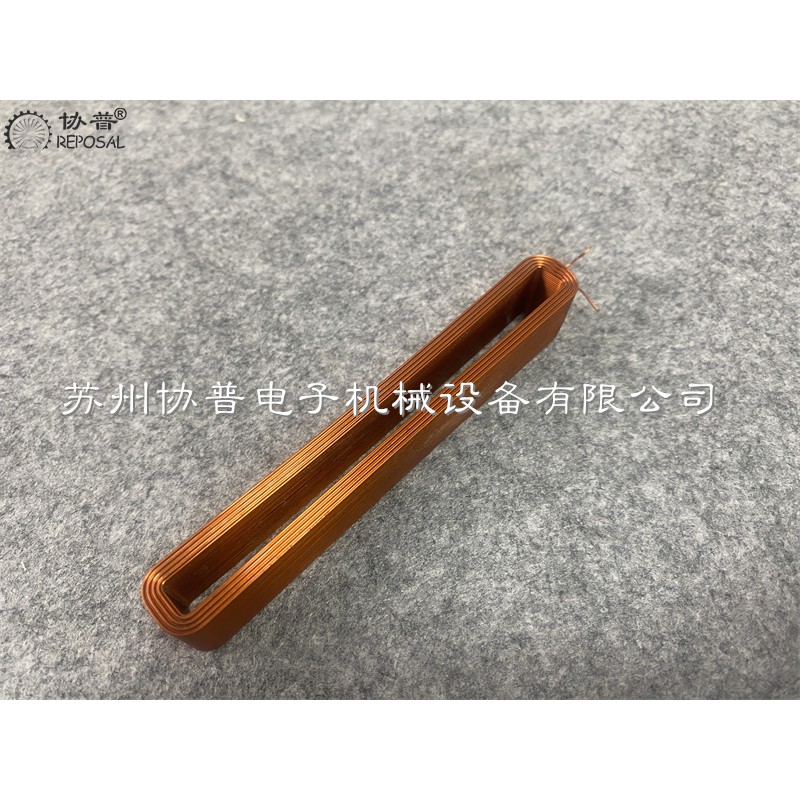

Precision Floor-standing Internal Cable Arrangement Winding Machine - Product Description:
- It is mainly developed for coils with relatively high general requirements. It is easy to use, with stable performance and excellent process rigidity.
- The controller adopts the REPOSAL precision winding motion controller, which has complete functions and is simple to operate. It is well recognized by the market.
- The winding shaft uses a 1.5kW AC servo motor. The cable arranging shaft uses a 0.4kW servo motor.
- Both the headstock and the tailstock are processed by integral casting, with high coaxiality and excellent process rigidity.
- The feeder assembly adopts a modular design, which can be selected according to different processes.
Main technical indicators:
- Controller: Special motion controller for precision winding machines
- Winding motor: 1.5KW servo motor
- Rated speed: 2500RPM
- Cable arranging motor: 400W servo motor
- Coupling: Precision flange 80mm
- Tensioner: Electronic tensioner
- Cable arranging device: V-groove copper wheel | guide pin
- Applicable coil: Transformer
- Applicable wire diameter: 0.2-1.2mm
- Frequency converter: None
- Brake resistor: None
- Chassis main body: Cast type
- Tailstock main body: Cast type
- Bearing span: 320mm
- Cable arranging stroke: 200mm
- Swing diameter: 200mm
- Total machine power: 2.5KW
- Shaft diameter: 15mm
- Torque: 6 N.m
- Storage groups: 200 groups
- Power supply: 220V 50Hz
- Frequency converter shield: None
- Electromagnetic brake: None
- Hexagon wrench: Available
- Foot switch: Available
- Power cord: Available
- Floor-standing cabinet: Available
